Simplify the difficult with ground screws!
Ground screw, earth screw, screw anchor, earth anchor or pier anchor – this simple and effective foundation has many names. Stop Digging’s ground screw works the same way as a concrete post or pier block, whilst outperforming it across the board. With our helical screws you can quickly and easily set out a stable foundation and begin construction immediately.
Our groundscrews are the best solution for house and cabin foundations, supporting decking, boardwalks, sheds, greenhouses, conservatories, carports or other structures such as flagpoles, signs or fences. Stop Digging offers a range of screws in different models and sizes to cater to whatever building project you have in mind, and on whatever terrain. Whether it is soft or hard ground, our screws are installed extremely quickly with no ground disturbance. They can support load immediately so there is no waiting for concrete to set!
Stop digging with Stop Digging!
Stop Digging is a Swedish company that designed and developed the ground screw: a modern and cost-effective ground anchor for both large and small construction projects. Our business ethos is not only to provide a high quality product, but to deliver and install it to the highest professional standard, saving you work, time and money. We install ground screws for a wide range of projects the length and breadth of New Zealand & Australia, all year round and in all weathers. Stop Digging’s professional installers will take your idea from the page and create a strong and stable foundation for you to complete your project.
Case studies of building projects with ground screws

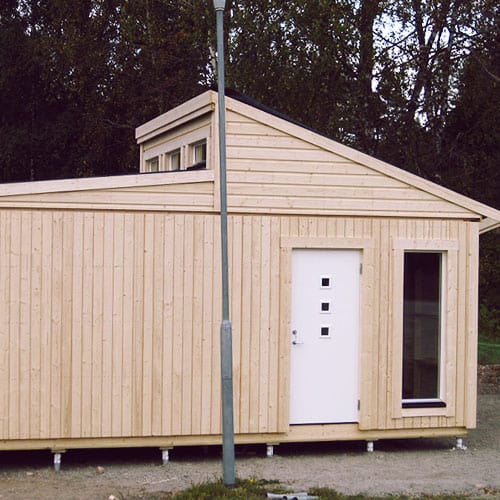

Building Houses and Cabins
Groundscrew foundations are the best way to create a shallow pile foundation for traditionally built timber or steel framed houses. Typically suitable for up to 2-storey buildings, the installation of groundscrews saves a huge amount of time and massively reduces the need for groundwork, excavation and the associated spoil disposal and cleaning. They are a direct replacement for timber or concrete piles, and a far more environmentally friendly option.
For transportable units and cabins, sleepouts, home offices, shipping container homes etc, the groundscrew is a versatile option that can easily be removed and re-used In the future with zero ground disturbance.
Groundscrews can also be used as a very cost effective solution for concrete slab or footing reinforcement, which is often required in expansive clays and other types of poor ground conditions.
As ground conditions get worse and locations become more remote, the use of groundscrews becomes even more economical in every way.
Coupled with our partner network of geotechnical and structural engineers, we offer professional design advice and groundscrew suitability studies. We then can provide the necessary engineered design and producer statements that are required for the Building Consent application and compliance with the Building Code.
Please contact us with your requirements for advice and pricing. We offer a free feasibility review and price guide.

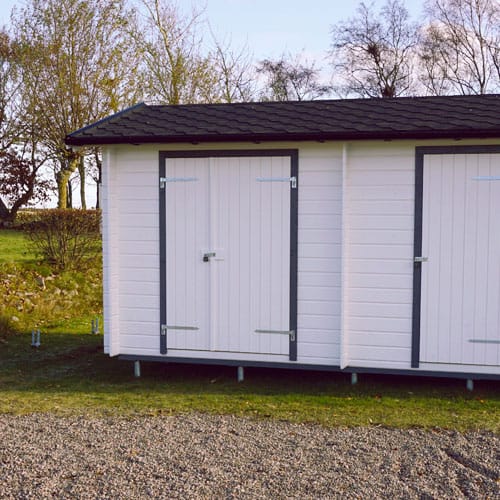

Building sheds and other garden buildings
Sheds and other single storey garden buildings can be constructed without building consent if they have a floor area of under 10 square metres. There are also requirements in regard to positioning in relation to the boundary or your section so it is alway best to check with the local council that your plans fall within the requirements.
We can also provide foundation design to incorporate groundscrew foundations for larger sheds that would be required as part of a building consent application.
As there is enormous variety in garden buildings, from kits through to self-made designs, ground screws are a versatile and flexible solution for any foundation needs. For example, a simple shed can be built on a deck-like foundation or frame and the number of supports will vary depending on the size of the structure. Stop Digging’s beam screws are ideal for this, and can be quickly and easily installed and adjusted for a level frame. Or, if the shed is a kit, then our adapter screw may be a better fit. Other storage buildings, such as bicycle sheds, bin rooms or children’s playhouses benefit enormously from the flexibility of ground screws and their precision adjustment for height and location. Contact your local installer for tips and quotes!
Normally, decks or boardwalks do not need a building consent if you cant fall more than 1.5 metres from it. However a safety barrier is required if there is a fall of 1 metre or more. It is recommended to confirm with your local council to ensure your proposed deck does not have any district planning implications such as site coverage etc.
As a first step we recommend you measure and mark the location of the decking in your garden. This will enable you to more easily visualise the decking, how it will be used, and the impact it has on the surroundings. It is also useful to think about the type of furniture and other items you want to place upon the deck so that it is not too small, or difficult to manoeuvre around.
If you are building over a lawn it is a good idea to cover this with a landscaping fabric followed by gravel to prevent the grass and weeds from poking up through the slats of the deck! The deck joists need to be anchored into the ground, usually at 2 metre intervals in all directions. This is ideally suited to the versatile ground screw rather than the older, heavier concrete piers or posts. Stop Digging’s installer will arrive at your home with all of the necessary equipment and will sink the beam screws according to your plan. Then, without delay, it’s time to start building!
We recommend using the span tables from NZ 3604 to determine the size and length of the bearers and joists used for construction of your deck. You will need to ensure you use H3.2 treated framing timber. We install the groundscrews to a laser level datum along the bearer lines, leaving you with the simple task of lifting the bearers into position and attaching to the groundscrews with coach screws or bolts! When the bearers and joists are in position, the fun begins with the fixing of the deck boards!

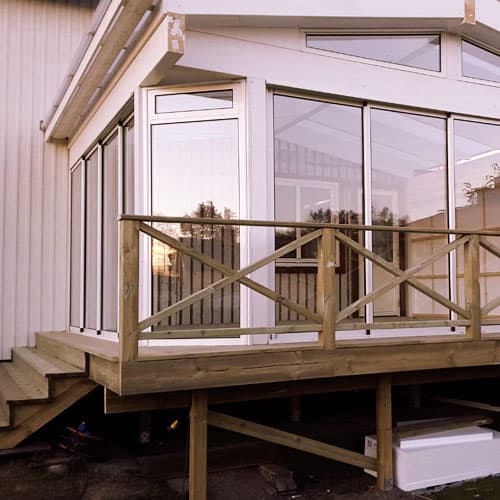

Building outdoor spaces
When you are planning to build a pergola or covered garden space planning permission may not be needed, but there are several restrictions so it is best if you speak with your planning officer about your design.
Pergolas, patio covers and other similar structures often can be purchased as kits or just bought as parts at your local DIY store. In either case, the design and construction is the same, using posts and beams resting on a sound foundation. The ground screw from Stop Digging is the perfect solution for installing an outdoor building such as this. As there is enormous variety in the design and manufacture of these structures, the versatility and precision placement of the ground screw is the best choice for such a foundation. Depending on the positioning and frame construction we recommend our post, adapter or beam screw. Often a combination of these over variable terrain gives the best results. Contact your local installer for a consultation and a quote. We have extensive experience in underpinning garden buildings across the length and breadth of the New Zealand and Australia.
A building consent is not usually required for fences or hoardings up to 2.5m high, although there are separate requirements for restricting access to residential pools.

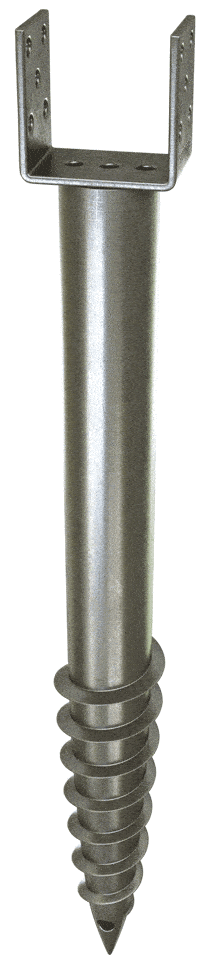

Fences have to take a lot of punishment from wind, rain, moulds, plants and children of course! We offer a range of post ground screws of different sizes and heads for attaching a wide variety of posts shapes. The size of the ground screw depends mainly on the height of the fence, with, for example a 935mm post screw easily supporting a 1.2m high fence with a post gap of approx 2m. We recommend you select pressure-treated wood, stainless steel screws and other fittings for longevity. When it comes to the fence’s design, google can help, but it is also a good idea to talk with your neighbours to find a mutually satisfactory design.
Measure out where you should have your fence and mark the ground at 1.8 meter intervals, for example. Call Stop Digging and our installer will come out and anchor all the post screws you need, after you inform them of any underground services or other issues. Once installed, you are good to go!
Building a carport
A Carport is a good alternative to a garage as it often more cost effective! Carports often do not need a building consent if they are less than 20 square metres of ground floor area. To be regarded as a carport, at least one side of the structure must remain open to the outdoors at all times. As there are certain exemptions, it is always worth checking with your local council to confirm your design is acceptable.
We recommend that you design the carport in a similar style to the surroundings so that the extension does not detract from your home. Don’t forget to install an electric socket in the carport for charging, cleaning and other tasks. Do not skimp on the dimensions so that parking is stress-free!
Ready, steady, build!
Ground screws replace concrete posts and piers without changing any other aspect of your building design. You can plan the perfect structure or building, and then before falling into the concrete trap, speak with Stop Digging and we can offer you an optimal solution for your foundation needs, without the hassle, mess and environmental cost of concrete. We can easily provide a quote and book an installation day!
We give you a secure anchorage
Our installers anchor the ground screws for you. Installation is quick and easy, for example the supports for a medium-sized wooden deck can be ready in just a few hours. The ground is pre-drilled for each screw to ensure the best possible bite, regardless of the type of soil or rock. Our equipment is light and portable and does not wreck your garden moving into place. The drilling does not tear up the grass, tarmac or other terrain, and after we are finished we leave behind the minimum of mess. Stop Digging’s Groundscrews are designed to exceed requirements of the Building Code in NZ for Durability.
in every way.
Ground screws replace and outperform concrete blocks. If we consider the environmental cost of concrete, ground screws offer a way forward in these changing times without sacrificing stability, cost or longevity.
Fast to install, strong, lightweight, low cost, robust, low mess, climate friendly – what is not to love! There are many advantages to the ground screw, but above all else it is about your time and effort: you do not have to lug heavy loads, dig deep holes, pour messy concrete and wait for it to set. Our helical ground screws should not be confused with basic ground anchors or lightweight soil screws from DIY stores that you can install yourself – We only offer a complete, installed foundation that meets all requirements of the building code. Contact us for design information.
|Simple and fast to install without the risk of complications||Fits all substrates: loamy, sandy, clay or rocky soil - we anchor in everything.||A climate sensitive choice: an equivalent concrete support emits 50% more carbon dioxide on average than a ground screw offering the same or better performance.|
Advantages of the ground screw:
|1. We install ground screws throughout the country all year round, even during a hard winter.||4. The ground screws are designed to exceed requirements of the Building Code in NZ for Durability.||7. Installation with light and portable equipment does not wreck the garden or surroundings.|
|2. Resistant to harsh, wet climates without corrosion: 4 mm hot-tempered galvanised steel.||5. We have the ground screw for all terrains, soils and tough surfaces in several models and lengths and a wide variety of attachments.||8. The ground screw does not destroy any surfaces around it and leaves minimal damage if removed.|
|3. Carefully tested for tension, pressure and load.||6. Numerous specialist applications with attachments and precision placement..||9. ISO certified and CE marked|
|Simple and fast to install without the risk of complications|
|Fits all substrates: loamy, sandy, clay or rocky soil - we anchor in everything.|
|A climate sensitive choice: an equivalent concrete support emits 50% more carbon dioxide on average than a ground screw offering the same or better performance.|
Advantages of the ground screw:
|1. We install ground screws throughout the country all year round, even during a hard winter.||6. The Groundscrews are designed to exceed requirements of the Building Code in NZ for Durability..|
|2. Installation with light and portable equipment does not wreck the garden or surroundings.||7. Resistant to harsh, wet climates without corrosion: 4 mm hot-tempered galvanised steel.|
|3. We have the ground screw for all terrains, soils and tough surfaces in several models and lengths and a wide variety of attachments.||8. The ground screw does not destroy any surfaces around it and leaves minimal damage if removed.|
|4. Carefully tested for tension, pressure and load./td>||9. Numerous specialist applications with attachments and precision placement.|
|5. ISO certified and CE marked.|
Save time, money and effort with the ground screw
A sound foundation is essential for all structures! Traditional concrete blocks are cumbersome, difficult to position and messy, let alone back breaking. Fortunately we are able to offer a better alternative! Our ground screws can help you deliver your dream project quickly and easily whether it be a new home, extension, home office or sleepout, decking, fencing, garden steps a stylish entrance or children’s playhouse. See what others have built and make your idea a reality.
The customer is always right – and in a hurry. When you choose to anchor your project with our ground screws, you save both time and money. We can install screws all year round, even in inaccessible locations, rocky ground and overly soft soils. Ground screws are also ideal for sensitive historic locations, disturbed or recently turned soils where further digging is already a risk. Don’t forget, with ground screws you can take on more projects without wasting time waiting for the concrete to set!
